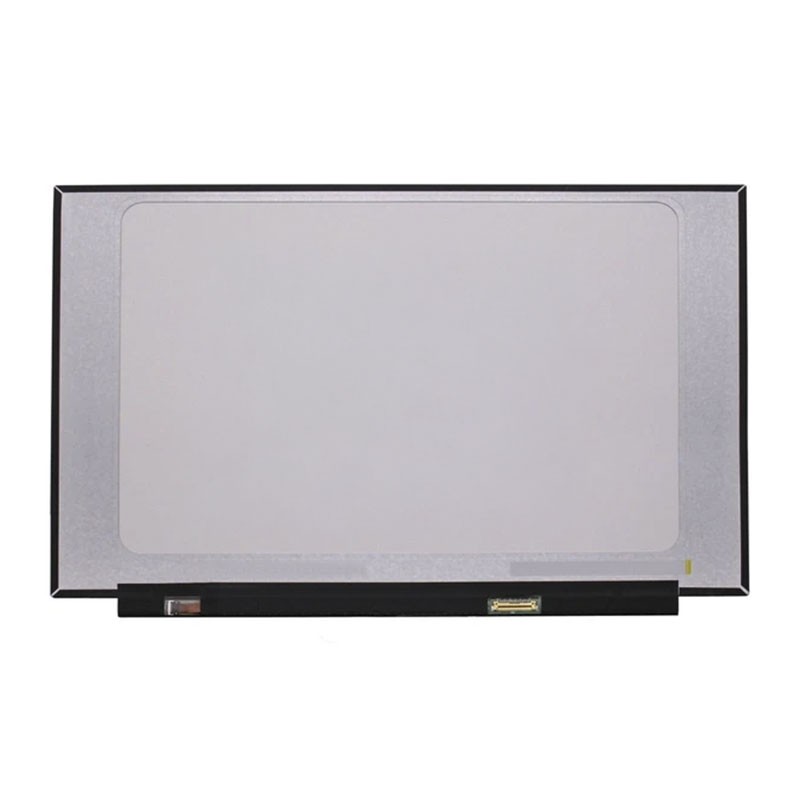

LCD Screen 15.6" N156HCA-EAB Rev C5 FHD IPS Matte 30-Pin, without Brackets
€44.95
incl. VAT
€99.00
-55%
Last items in stock
The Innolux N156HCA-EAB Rev C5 is a replacement laptop screen for 15.6-inch laptops with Full HD 1920 × 1080 resolution, designed for compatible devices with a 30-pin eDP connection. The N156HCA-EAB family uses IPS-type AAS technology, WLED backlighting, 60 Hz, and an anti-glare finish, offering wide viewing angles and a surface especially suited for office work, browsing, and professional use.
Read more
Estado
Ver más
You have left €99.00 until free shipping
Grade A+
For those who care about aesthetics.
- Devices with a very attractive visual appearance.
- They may only show slight superficial aesthetic signs, almost imperceptible.
- Perfect for those who value both aesthetics and functionality.
- Ideal if you are looking for refurbished technology that looks great at first glance.
Grade A
Balance between price and good appearance.
- Well-kept appearance with possible small scratches or signs of use.
- Imperfections from normal use, without affecting performance.
- Reliable and with the best value for money in refurbished technology.
Outlet Grade
More savings, same functionality.
- Visible aesthetic marks or a minor defect, described in the product page.
- Always functional and checked by our technicians.
- Perfect if you prioritize performance and the tightest price.
Km0 Grade
Almost new, but much smarter.
- From liquidations, closures or surplus stock.
- No signs of use; impeccable condition and original box.
- Ideal for getting a like-new device at a refurbished price.
Take care of the planet without paying more.
All devices go through 29 checkpoints, inspected by certified technicians in our warehouses. No middlemen and certified quality.
Up to 3 years warranty Enjoy up to 3 years warranty and a 30-day trial
Guaranteed sustainability By choosing refurbished, you reduce technological waste and save resources.
100% verified equipment Refurbished by professionals. Checked at 17 checkpoints
Free shipping on orders over €99 All our products are in stock and ready to ship
We are trustworthy:
Product information
Degree
New
Brand
Innolux
Model
N156HCA-EAB Rev C5
- 15.6" Full HD panel with AAS/IPS technology, providing sharp image quality and wide viewing angles for comfortable everyday use.
- 30-pin eDP connection and 60 Hz refresh rate, a widely used format in Slim laptop displays for compatible notebooks.
- Anti-glare finish with 3H coating, especially practical for office work, studying, and long hours in front of the laptop.
SPECIFICATIONS
Manufacturer and model
- Manufacturer: Innolux
- Model: N156HCA-EAB
- Indicated revision: Rev C5
- Product type: Laptop display module
- Base technology: a-Si TFT-LCD
- Configuration: LCM
Display
- Nominal size: 15.6 inches
- Specified diagonal: 15.547 inches
- Resolution: Full HD (1920 × 1080)
- Aspect ratio: 16:9
- Panel technology: AAS, IPS family
- Mode: Normally Black
- Type: Transmissive
- Touchscreen: No
- Refresh rate: 60 Hz
- Approximate pixel density: 141 ppi
- Typical brightness: 250 cd/m²
- Typical contrast: 700:1
- Colors: 16.7 million
- NTSC coverage: approximately 45%
- Horizontal viewing angle: 178°
- Vertical viewing angle: 178°
- L/R/U/D angles: 89° / 89° / 89° / 89°
- Pixel pitch: 0.17925 × 0.17925 mm
- Pixel arrangement: RGB vertical stripe
Surface
- Finish: Anti-glare
- Surface treatment: Hard Coating 3H
- Matte surface
Backlight
- Technology: WLED
- Integrated LED driver
- Specified family lifespan: approximately 15,000 hours
Connector
- Interface: eDP
- Version: eDP 1.2
- Number of lanes: 2
- Connector: 30 pins
- Typical supply voltage: 3.3 V
- Connector position: Bottom right
Dimensions and weight
- Active area: 344.16 × 193.59 mm
- Total width: 350.66 mm
- Total height: approximately 216.25 mm
- Thickness: approximately 3.2 mm
- Typical family weight: approximately 355 g
- Design: Slim
Temperatures
- Operating temperature: 0 °C to 50 °C
- Storage temperature: -20 °C to 60 °C
Compatibility
- Compatible with laptops designed for N156HCA-EAB panels with equivalent physical and electrical specifications
- Required size: 15.6 inches
- Required resolution: 1920 × 1080
- Required interface: eDP
- Required connector: 30 pins
- Touchscreen: No
- It is essential to check the original screen reference and revision before replacement
- Matching only the size and resolution does not guarantee compatibility
Read the full data sheet here and check if it suits you
